Product Info

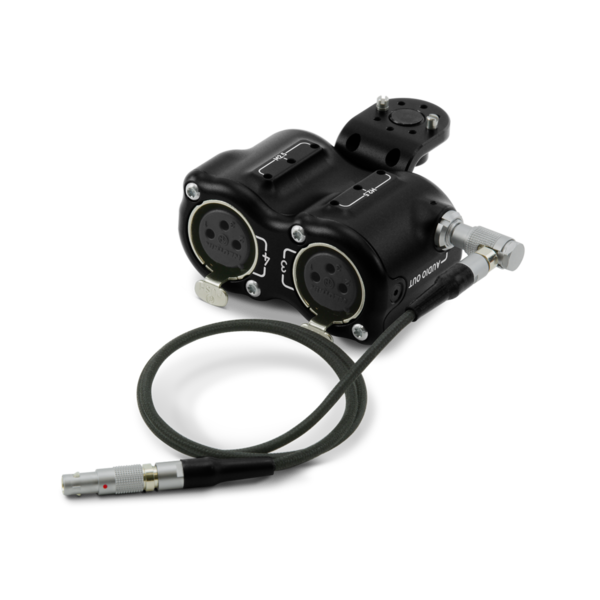

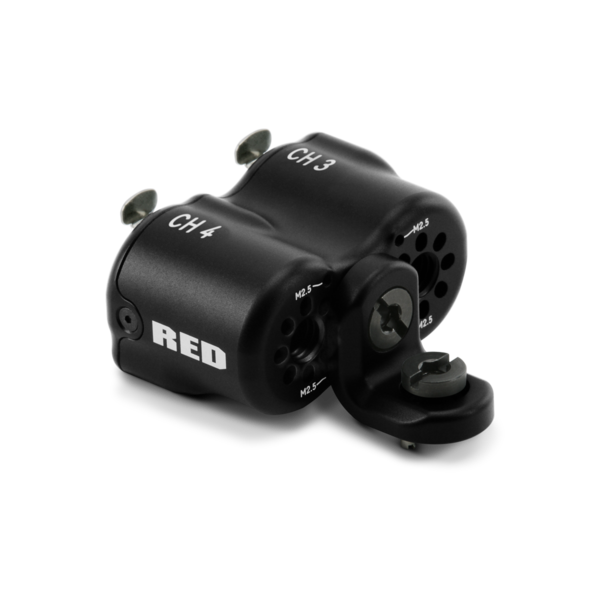

The DSMC3™ RED® 5-Pin to Dual XLR Adapter is a compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports. The Adapter can provide 48V phantom power with mic and line input and is easily mounted to your V-RAPTOR® via ⅜-16 screw.
For issues troubleshooting, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | ✓ | ✓ | ✓ |
| DIMENSIONS ADAPTER | Height: 1.31 in (33.15 mm) Width: 2.54 in (64.50 mm) Depth: 1.70 in (43.16 mm) |
|---|---|
| DIMENSIONS RIGHT ANGLE BRACKET | Height: 1.10 in (28.00 mm) Width: .87 in (22.00 mm) Depth: 1.10 in (28.00 mm) |
| WEIGHT ADAPTER W/ BRACKET | Approximately 0.50 lbs (224.81 g) |
| MATERIAL | Aluminum and Rubber |
| CONNECTION TO V-RAPTOR | Via 5-Pin Audio Port |
| CONNECTORS | 2x 3-Pin XLR (Female) |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
- 1x 3-Pin XLR Port Adapter
- 1x 5-Pin Right-to-Straight Cable ~12.0 in. (289.0 mm) (Length measured from end-to-end of cable including connectors)
