Product Info

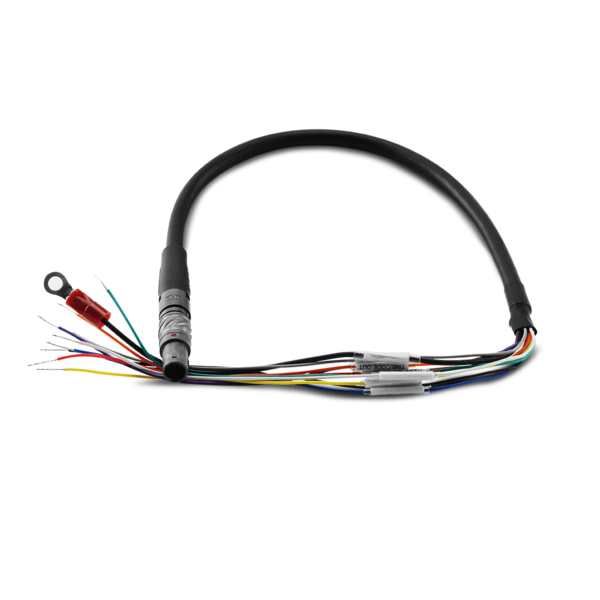

Designed for advanced KOMODO® users, the RED® 9-Pin EXT-to-Flying Lead Cable (1.3ft/ 15.6in) breaks out to any of the functions of the EXT port including: Timecode In/Out, GPI/ GPO, Genlock, RS-232 TX/RX and 5V Aux (500 ma Max) allowing users to create custom cables.
Timecode Out (Pin 2) is not currently supported on KOMODO.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | ✓ | ✓ | ✓ | - |
9-PIN OB ODU AUXILIARY PORT PINOUT
| PIN | SIGNAL | DESCRIPTION |
|---|---|---|
| 1 | 5 V AUX | 5 Volt AUX (500 mA Max) enabled using the Power menu |
| 2 | Timecode Out | Timecode Out – SMPTE 12M1 |
| 3 | GPO | General Purpose Out, Tally or Sync, 3.3 Volt Logic Level1 |
| 4 | UART TX | RS-232 Transmit |
| 5 | UART RX | RS-232 Receive |
| 6 | GPI | General Purpose In, 3.3 Volt Logic Level2 |
| 7 | Timecode In | Timecode In – SMPTE 12M |
| 8 | Genlock | Tri-Level Genlock In (SMPTE 296M and 274M) |
| 9 | GND | Signal and Power Ground |
1. Not currently supported
2. The signal path includes a resistor pulling the signal high, which is designed to work with a closure switch connected to GND.
