Product Info

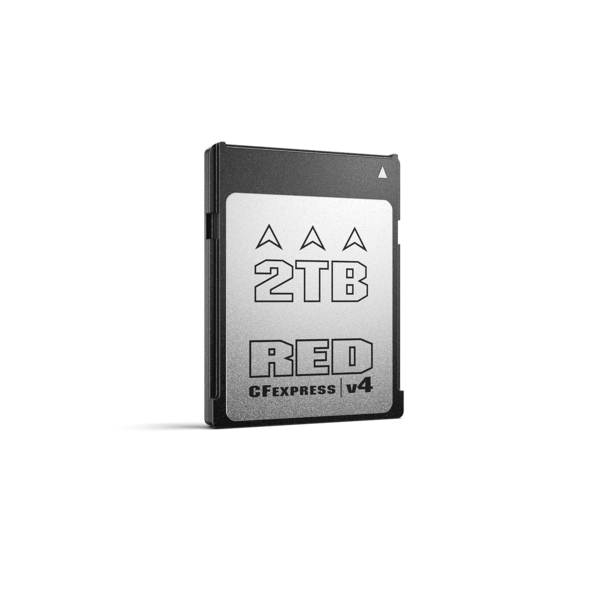

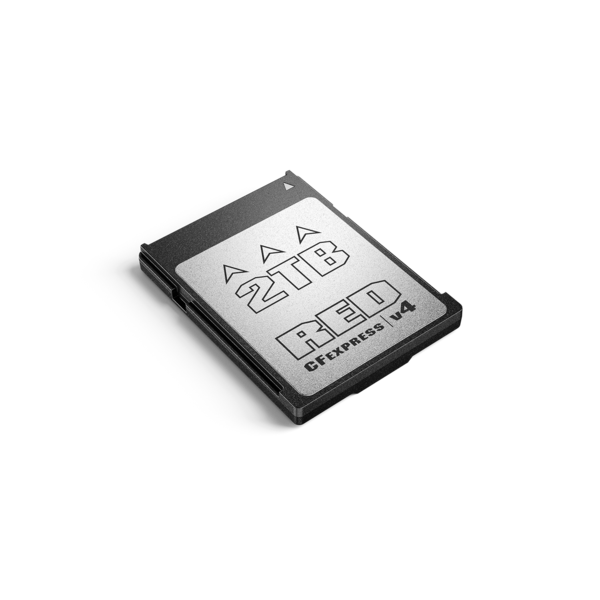

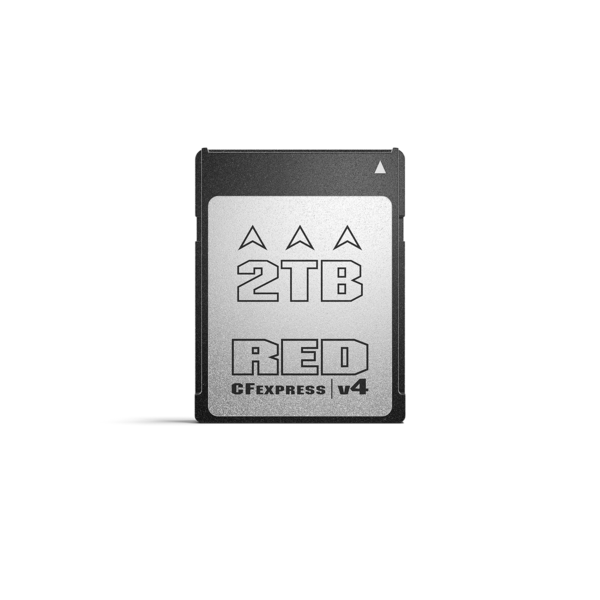

RED® has created the RED PRO CFexpress v4 Type B 1 TB and 2 TB cards in collaboration with Angelbird Technologies to specifically meet the high-performance needs of the RED V-RAPTOR® and KOMODO-X® systems. These cards are the official, RED-certified, media cards approved for these cameras.
The durable media is CFexpress™ v4 Type B compliant and supports precision recording of high bit-rate files with industrial-grade performance and durability extended through the capacity of the card. CFexpress™ v4 Type B provides increased read and write speeds, resulting in faster offload times when paired with the RED® PRO CFexpress v4 Type B Card Reader.
All RED certified, media cards have undergone extensive and rigorous testing to ensure optimized performance and reliability. RED highly recommends using RED PRO CFexpress v4 Type B media when possible. Otherwise, you can consult the RED APPROVED accessories list at https://www.red.com/third-party-accessories to find alternative options.
RED PRO CFexpress v4 Type B Cards are eligible for an extended 3 year limited warranty provided by Angelbird in Austria. Angelbird’s warranty includes individualized customer service, technical support and free data recovery service on hard- and software level. The data recovery service covers media that has encountered physical damage and/or software issues such as data or file corruption. For media issues or troubleshooting, please visit www.angelbird.com/support. Visit their website at www.angelbird.com/warranty-activation and activate your product warranty within 30 days of purchase.
NOTE: RED PRO CFexpress v4 Type B media is supported in firmware 2.0.4 beta or later.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | - | ✓ | ✓ | ✓ |
| DIMENSIONS | Height: ~1.52 in. (38.5 mm) Width: ~1.17 in. (29.6 mm) Depth: ~0.15 in. (3.8 mm) |
|---|---|
| WEIGHT | Approximately 0.016 lbs (7.0 g) |
| MAX DATA RATES | V-RAPTOR 8K up to 800 MB/s KOMODO-X 6K up to 560 MB/s |
| OPERATING TEMPERATURE | -10℃ to 70℃ (14°F to 158°F) |
| STORAGE TEMPERATURE | -20℃ to 85℃ (-4°F to 185°F) |
| OPERATING HUMIDITY | 5% to 95%, non-condensing |
| SHOCK RESISTANCE (OPERATING) | 50 G @ 10-2000Hz |
| VIBRATION RESISTANCE (OPERATING) | 15 G |
| USABLE CAPACITY | RED PRO CFexpress v4 2TB: 2048.41 GB / 1907.73 GiB RED PRO CFexpress v4 1TB: 1024.21 GB / 953.87 GiB |
Tech specs reflect both current and projected information. Everything is subject to change.
