Product Info

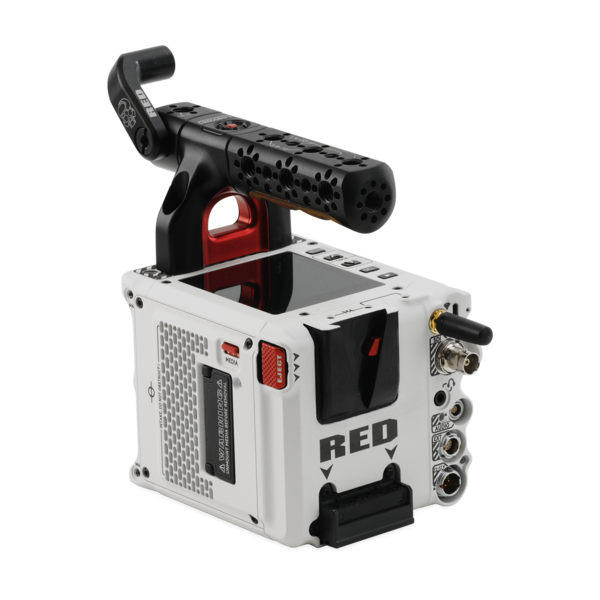

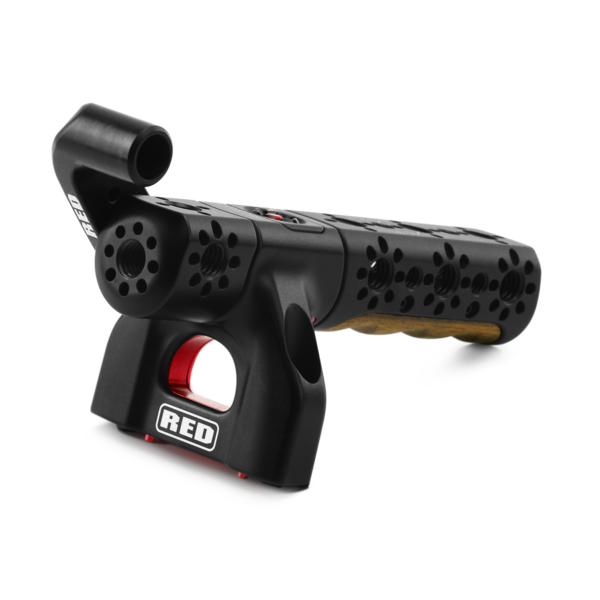

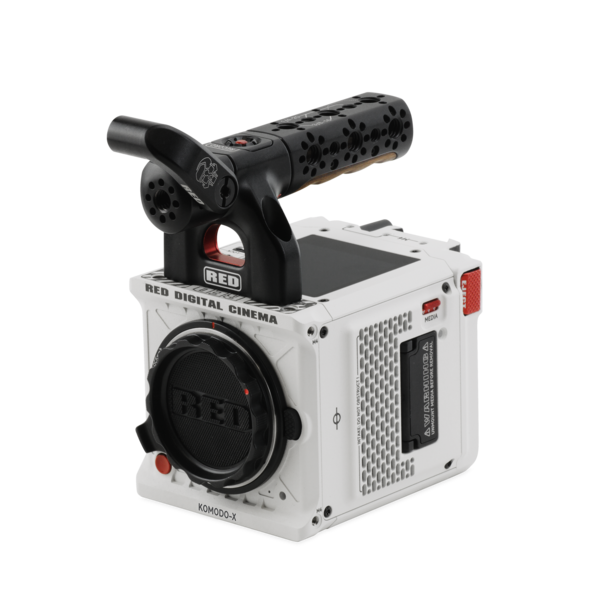

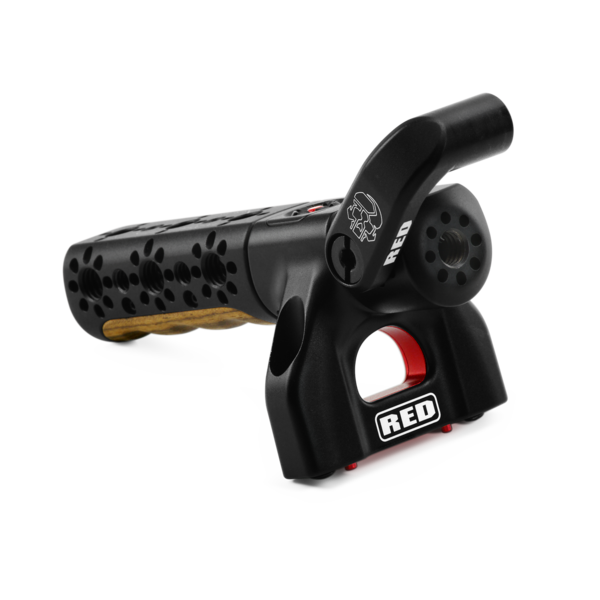

The RED® Compact Top Handle easily mounts to the top of the KOMODO®, KOMODO-X™, V-RAPTOR® or V-RAPTOR® XL camera bodies while offering a combination of comfort and utility for carrying or shooting with your camera. This top-mounted machined handle features ergonomic Bocote wood inlays with camera trigger control. The handle includes: handle trigger, rear 3” piece, front 1” piece and 15mm Monitor Mount.
For issues or troubleshooting, contact support@cs.inc.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | - | - | ✓ | ✓ | ✓ | ✓ |
| DIMENSIONS | Height: 2.63 in (66.80 mm) Width: 2.36 in (60.00 mm) Depth: 4.50 in (114.20 mm) |
|---|---|
| WEIGHT | Approximately 0.41 lbs (188.00 g) |
| MATERIALS | Aluminum & Bocote Hardwood |
| MOUNTING TO CAMERA | 2x 1/4-20 Captive Mounting Screws |
| CONTROLS | Run/Stop |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
- 1x Handle Trigger
- 1x Front 1" Piece
- 1x Rear 3" Piece
- 1x 15mm Monitor Mount
